When it comes to keeping your garage, workshop, or home clean, the right tools make all the difference. Giraffe Tools' wall-mounted vacuum cleaner is designed to simplify the process, giving you a hassle-free cleaning experience without the bulk of traditional vacuums.
In this guide, we’ll walk you through three different ways to set up your vacuum cleaner: the standard wall-mounted installation, a creative DIY option using French cleats, and a flexible DIY rolling cart setup. Let’s dive in!
Part 1: Standard Installation—Mounting Your Vacuum Cleaner on the Wall
Tools You’ll Need:
-
Electric drill
-
12mm drill bit
-
Anchors (12mm x 50mm)
-
Screwdriver
-
Wall mount brackets (included with your vacuum)
Step-by-Step Installation Process:
-
Choose the Right Location:
-
- Pick a spot close to a power outlet, ensuring that the vacuum's hose will reach the areas you need to clean. It’s recommended to mount the vacuum about 47 inches (120cm) from the floor for optimal hose retraction and ease of use.
-
Drill Holes for Mounting:
-
Use a 12mm drill bit to drill four holes in the wall. The holes should be about 3-1/8” (80mm) deep.
-
Ensure that you drill into a sturdy part of the wall—preferably a concrete or solid wood surface for maximum support.
-
-

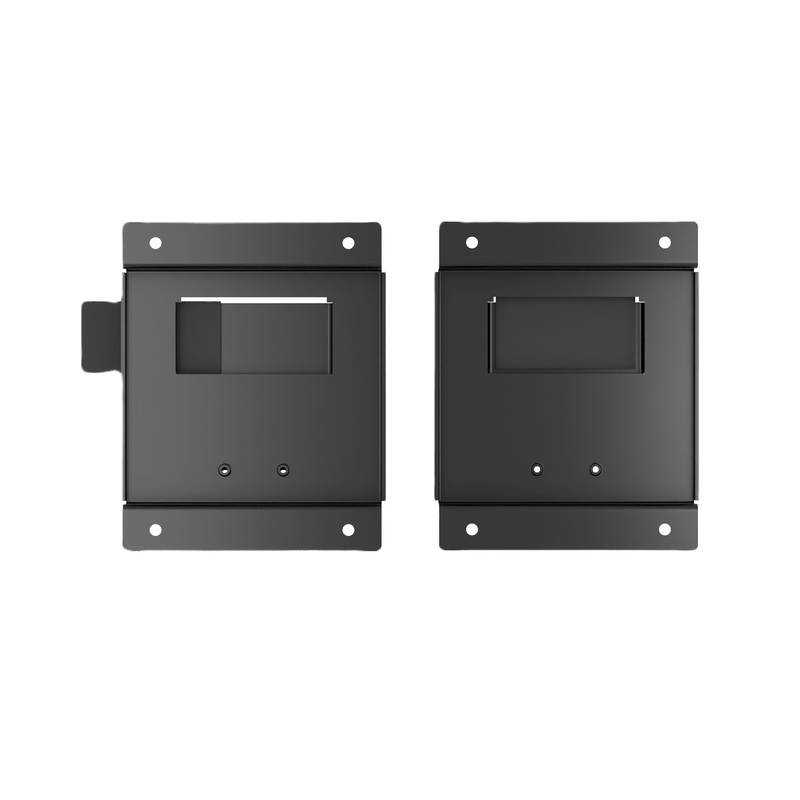

Install the Wall Mount Brackets:
-
Insert anchors into the holes and secure the brackets with screws. Make sure the brackets are tightly attached to the wall.
-
-
Mount the Vacuum Cleaner:
-
Hang the vacuum cleaner on the installed brackets. Double-check that the unit is secure and stable.
-
-
Connect Power and Hose:
-
Plug the vacuum into the nearest electrical outlet.
-
Attach the vacuum hose to the cleaner, ensuring it’s firmly connected.
-
-
Test the Vacuum:
-
Once installed, power on the vacuum and test its function by pulling out the hose and retracting it. Ensure smooth operation and that everything is working as expected.
-
Part 2: User-Shared DIY Installations—Customizing Your Setup
Not everyone wants to install their vacuum cleaner on the wall using the standard method. Here are two creative DIY setups shared by users that allow for more flexibility and customization:
DIY Idea 1: French Cleat Wall Mount
The French cleat method is perfect for those who want to have flexibility in positioning their vacuum cleaner. This method allows you to easily move the vacuum to different parts of the wall without needing to drill extra holes.
Tools You’ll Need:
-
1-inch thick plywood
-
Saw (to cut the plywood into cleat shapes)
-
Screws and anchors
-
Drill
Steps:
-
Create the French Cleat System:
Cut two pieces of plywood at a 45-degree angle to create the cleat system. Mount one piece on the wall and the other on the vacuum unit. -
Install on the Wall:
Secure the cleat system on a reinforced wall, ensuring that it can support the vacuum’s weight. -
Mount and Move the Vacuum:
Hang the vacuum on the cleat system. This method allows you to move the vacuum easily, giving you more flexibility in where it’s placed.
Benefits:
-
Flexibility: Easily move the vacuum between different areas.
-
No permanent installation: Ideal for renters or those who want to adjust the vacuum’s placement over time.
DIY Idea 2: Self-Made Rolling Cart Installation
If you prefer not to mount your vacuum on the wall, consider building a self-made rolling cart. This option is ideal for those who need portability and don’t want to drill holes into the walls.
Tools You’ll Need:
-
Heavy-duty rolling cart (either purchased or homemade)
-
Screws and mounting brackets
Steps:
-
Choose a Strong Cart:
Select a cart that can bear the weight of your vacuum and accessories. You can purchase a ready-made rolling cart or build one yourself using sturdy wood and metal. -
Fix the Vacuum to the Cart:
Secure the vacuum to the cart using screws and brackets. Ensure that the vacuum is tightly fastened to prevent any movement during use. -
Customize the Cart (Optional):
If you’d like, you can further modify the cart by adding extra storage for tools, or upgrading the wheels to make it even more mobile.
Benefits:
-
Portability: Easily move the vacuum from place to place.
-
No need for wall installation: Perfect for those who don’t want to make holes in their walls or need flexibility in their setup.
Part 3: Introducing the New Vacuum Extension Hose—Extend Your Reach

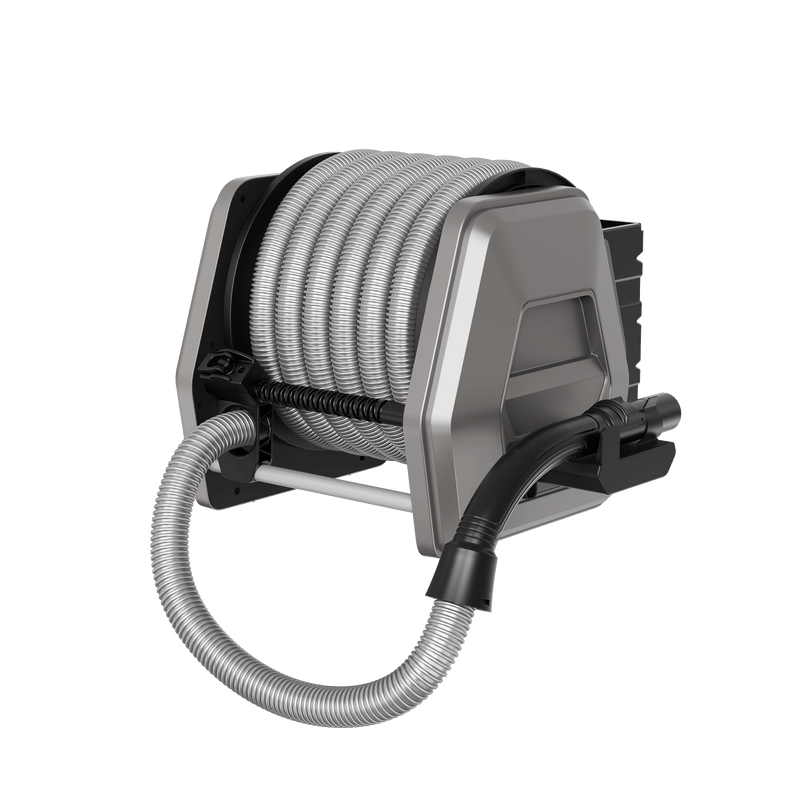

For those who already have a vacuum cleaner but find the hose too short or struggle with moving the entire unit, the Retractable Vacuum Extension Hose Reel is the perfect solution. This extension hose adds flexibility and makes it easier to clean larger areas without dragging the vacuum around.
Key Features of the Extension Hose:
-
30-foot hose: Provides an extended reach for cleaning large areas like garages, driveways, or patios.
-
Auto-retract: The hose easily retracts back into the reel, keeping everything neat and organized when you’re done.
-
Compatible with existing vacuum: Seamlessly attaches to your vacuum cleaner, giving you greater cleaning flexibility.
How It Helps:
The extension hose allows you to reach far corners and tight spots without needing to move the vacuum itself. Whether you're detailing your car, cleaning the garage, or tackling large outdoor spaces, this hose gives you the freedom to clean efficiently and easily.
A Customizable Setup for Every Home
Whether you choose the standard wall-mounted installation, a creative DIY solution like the French cleat system, or a mobile rolling cart, Giraffe Tools offers flexible options to help you set up your vacuum cleaner the way that works best for your space.
