A retractable garden hose reel uses a spring-driven mechanism to pull the hose back into its housing automatically, without a motor, power cord, or manual crank. Pull the hose out to the length you need, and an internal lock holds it there until you release it to rewind.
This guide covers how that mechanism works, the difference between wall-mounted and ground-mounted setups, and what to check — hose diameter, length, and pressure rating — before choosing a reel for your yard.
What is a Retractable Hose Reel?
Retractable, Automatic, and Self-Winding
These terms all describe a reel that pulls the hose back in for you, though the exact drive and locking mechanism vary by brand and model. Spring-driven reels use tension built up as you pull the hose out, combined with a lock that holds it at any length, so there's no crank to turn and no motor to power.
Best Use Cases for a Retractable Reel
A retractable reel makes the most sense if you water often — daily plant care, regular pet washing, or frequent patio rinsing from one fixed spot. It keeps the hose off walkways and cuts down on bending to coil it by hand. A retractable garden hose reel is a solid fit for that kind of routine, though if you tend to move between distant zones of the yard, or you like swapping hoses freely, a manual reel or cart might actually serve you better.
Weighing the Extra Cost
For most households that use a hose several times a week, the extra cost is worth it. Compared to a hose left loose on the ground, or even a basic manual reel, an automatic one saves setup and cleanup time and keeps the hose protected inside its housing between uses. If you only water a few times a month, though, the time savings may not offset the higher price — a simple hanger or manual reel could be the better value depending on how your yard is laid out.
What is the Working Principle of a Retractable Hose Reel?
The spring-driven system runs through four stages, and none of them need electricity.
Pulling Out the Hose
Similar to a tape measure, a flat-coil spring inside the housing stores mechanical energy as you pull the hose out. The farther you pull, the more tension builds, and a controlled return system manages how that tension releases on the way back in.
Locking at Any Length
An any-length lock holds the hose exactly where you release it, so you only pull out as much as a flower bed, pet wash, or patio rinse actually requires — no dragging the full length out every time.
Starting the Auto-Rewind
Turn off the faucet, open the nozzle to release built-up pressure, and give the hose a light tug to start it winding back in. Guide it back by hand as it retracts — never let the nozzle whip toward the housing, and don't try to manually adjust a loaded spring.
The Self-Layering Guide Mechanism
Inside the housing, a threaded shaft moves a guide plate side to side so the hose winds back in even layers instead of bunching on one side. Better-built reels use POM components for low-friction, self-lubricating movement, aluminum parts for wear resistance, and a thicker shaft that shortens the guide's travel distance to reduce long-term wear.
Wall-Mounted or Ground-Mounted: Which Setup Fits Your Yard?
The core differences come down to location, rotation range, and how each one gets installed.
Wall-Mounted Reels and Floor Space
A wall-mounted reel keeps your yard clear and typically swivels 180 degrees around a fixed point. Wood studs, solid masonry, or a properly sized post can support the mount with the right hardware. Fiber-cement siding needs fastening through the panel into a structural stud, and thin vinyl siding shouldn't carry the weight at all. Post dimensions and hole spacing vary by model, and longer reels generally need a larger post — worth checking before you drill anything.

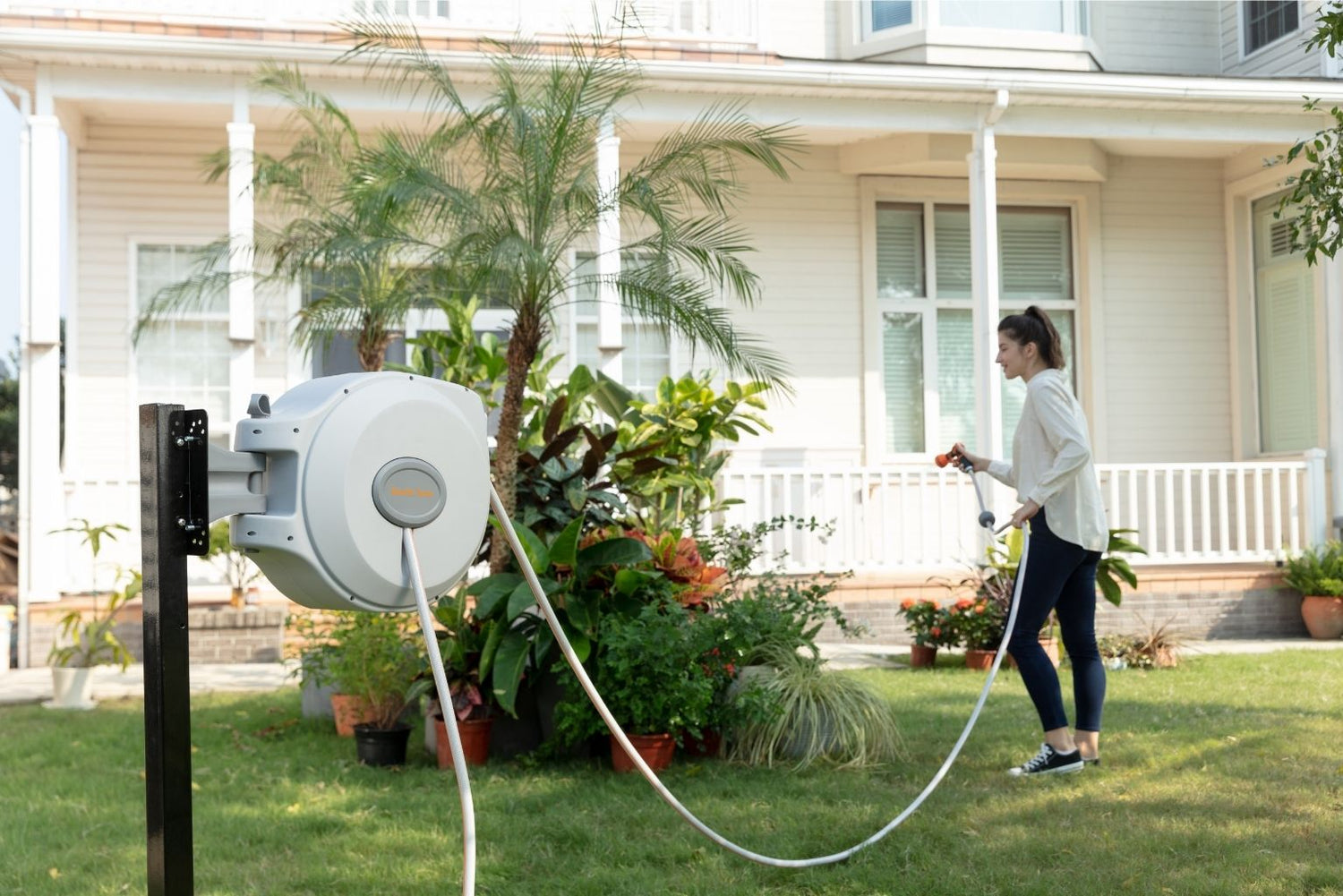

Ground-Mounted Reels and Yard Space
A ground-mounted reel avoids wall drilling altogether and rotates a full 360 degrees, which makes it a good fit for open lawns or yards without a wall in a convenient spot. It still needs to be secured, either staked into soil or anchored to concrete, and should sit clear of walkways and mower paths. The Ground Mounted Retractable Hose Reel is one option built for this kind of setup, with reach options suited to larger open yards.
Wall-Mounted vs. Ground-Mounted at a Glance
|
Mount Type |
Rotation |
Installation |
Best For |
Main Trade-Off |
|
Wall-mounted |
180° |
Fastened to structural wall support or a suitable post |
Fixed watering zones, clear floors |
Needs a load-bearing mounting point |
|
Ground-mounted |
360° |
Staked into soil or anchored to concrete |
Lawns, open yards, no suitable wall |
Takes up ground space, still needs anchoring |
How Should You Choose the Right Reel for Your Yard?
Measuring the Route From the Faucet
Measure the real path the hose will travel — around corners, garden beds, and steps — rather than a straight-line distance. A practical rule of thumb is to add 10-15% on top of that measurement for turns and positioning. Buying more length than you need adds pull weight and can reduce flow at the far end, so longer isn't automatically better.
1/2-Inch vs. 5/8-Inch Hose
A 1/2-inch hose is lighter and easier to pull out and guide back in. A 5/8-inch hose moves more water, which matters more for sprinklers or filling containers quickly. Either way, actual flow also depends on your supply pressure, hose length, elevation changes, and whatever fittings or nozzle you're using.
Beyond the "Auto-Rewind" Label
The label alone doesn't tell you much. Look instead for an any-length lock, a light-tug release, a controlled (not sudden) return, a nozzle stopper, and a guide mechanism that actually prevents the hose from piling up on one side. Smooth, repeatable retraction matters far more than the marketing term.
Hose and Pressure Specifications
Confirm hose material, number of layers, working pressure, burst pressure, and temperature range for the specific model you're considering — these numbers can vary even within the same product line, and they're just as relevant if you're comparing a standalone garden hose rather than one built into a reel. UV-resistant housing helps the reel hold up outdoors, but it's not a substitute for basic seasonal care.
Bracket and Anchor Compatibility
Bracket capacity varies by material — polypropylene brackets are typically rated lower than metal ones, which offer more rigidity for heavier setups. Whatever material you choose, use fasteners rated for the surface you're mounting to, whether that's wood, masonry, or a post.
What's in the Box and What's Serviceable
Look at what actually comes in the box: pre-installed hose, lead-in hose, nozzle, mounting hardware, and instructions. Lead-in hose construction differs by model — some are integrated into the unit, others are detachable — so it's worth checking the specifications on the exact listing rather than assuming based on mount type alone. The main hose usually isn't user-replaceable, so it's worth confirming parts support before you buy. And if you're anywhere that sees hard freezes, drain the reel and follow winter-storage steps to avoid damage.
Which Reel Size Actually Matches Your Yard?
Use this as a starting point, then confirm the exact combination against your measured route.
|
Yard or Need |
Mount |
Suggested Size |
Watch-Out |
|
Small patio or compact garden |
Wall or ground |
5/8 in × 65 ft (wall) or 1/2 in × 82 ft (ground) |
Don't treat diameter and length as interchangeable |
|
Average yard |
Wall |
1/2 in × 100 ft |
Confirm structural support and swivel clearance |
|
Large yard, longer reach |
Wall or ground |
1/2 in × 130 ft or 155 ft, where available |
More pull weight, possible pressure loss at the end |
|
Higher-flow tasks |
Wall or ground |
5/8 in × 90-115 ft |
Thicker hose is heavier to pull |
|
No suitable wall |
Ground |
1/2 in × 82/130 ft or 5/8 in × 92 ft |
Uses ground space, still needs anchoring |
If you're browsing options, Giraffe Tools offers reels covering most of these size and mount combinations, though it's worth checking current listings since availability changes.
Final Thoughts: Choose for the Way You Actually Water
Start with what you can realistically install, measure the real route the hose will take, and balance easy handling against flow needs. The biggest reel on the shelf isn't automatically the right one — the best choice fits your mounting surface, how often you actually water, and how much maintenance you're willing to do.
FAQ
What to Look for in a Retractable Hose Reel?
Look for an any-length lock, a light-tug release, a controlled (not sudden) return, and a self-layering guide that prevents uneven piling. Also confirm bracket capacity, hose diameter, and pressure rating fit your yard.
What Are the Common Problems With Retractable Hoses?
The most common issues are uneven rewinding, a hose that won't lock at the right length, and kinking near the housing. Most are avoidable with a light tug to start the rewind and letting the hose feed back in gradually.
What Is the Best Height for a Retractable Hose Reel?
For wall-mounted reels, 12 to 24 inches off the ground is a common range — high enough to clear mowing equipment, low enough for easy access. Exact height depends on the model's swivel radius and your yard layout.
What Are the Different Types of Retractable Hose Reels?
The two main types are wall-mounted, which swivels around a fixed point, and ground-mounted, which rotates 360 degrees without wall drilling. Within each, models vary by hose diameter and overall length.
Are Retractable Hose Reels Worth It?
For households watering several times a week from one spot, yes — the time saved and hose protection usually justify the cost. If you water occasionally or move between yard zones, a manual reel may offer better value.
